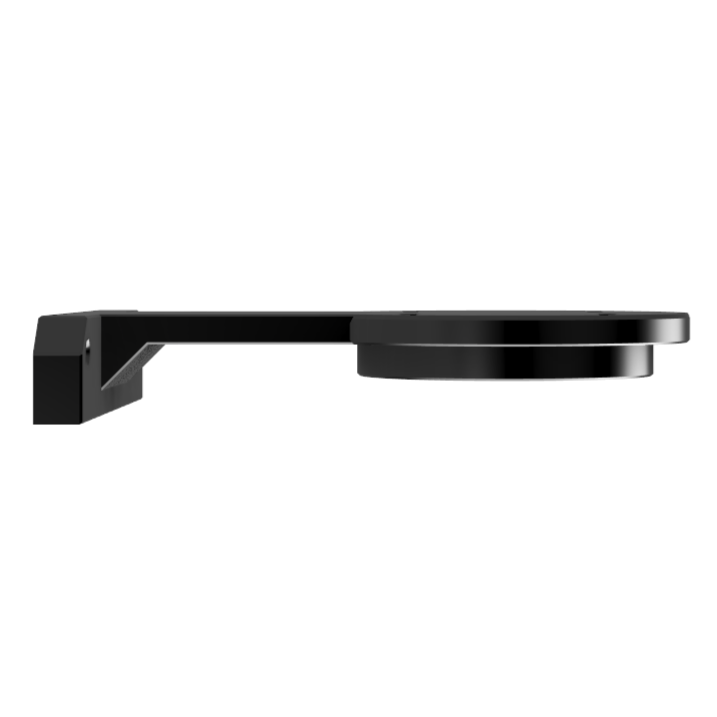

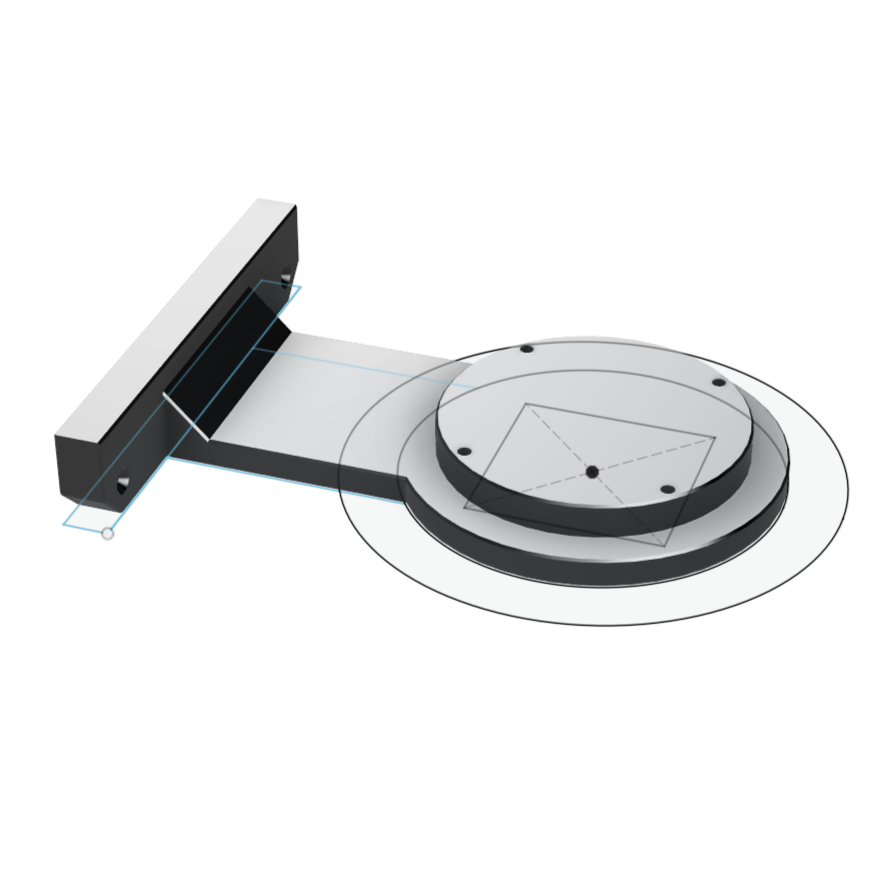

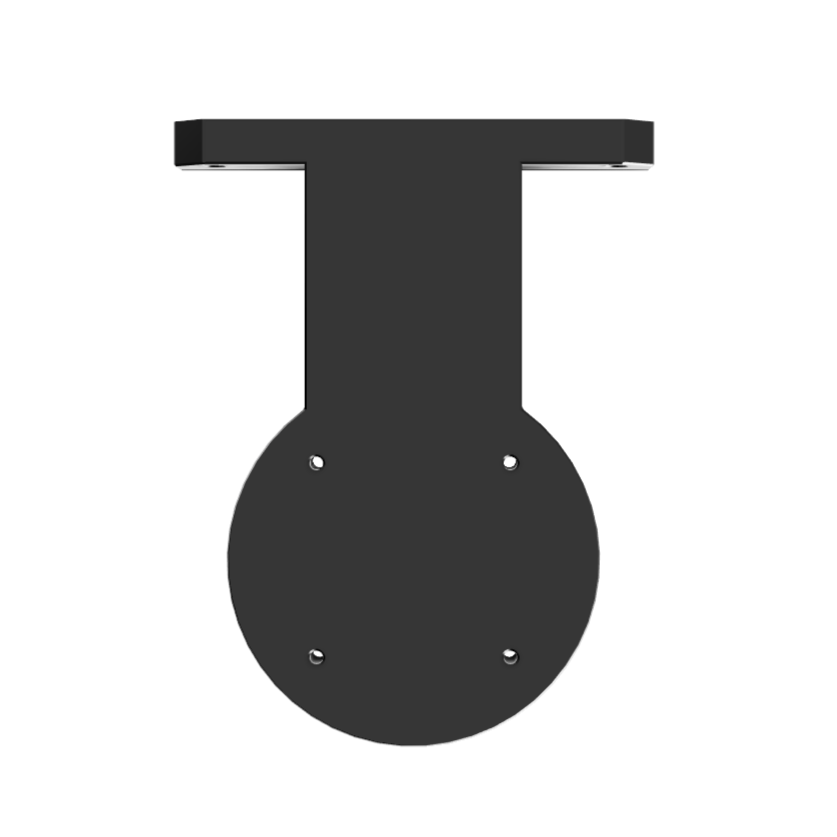

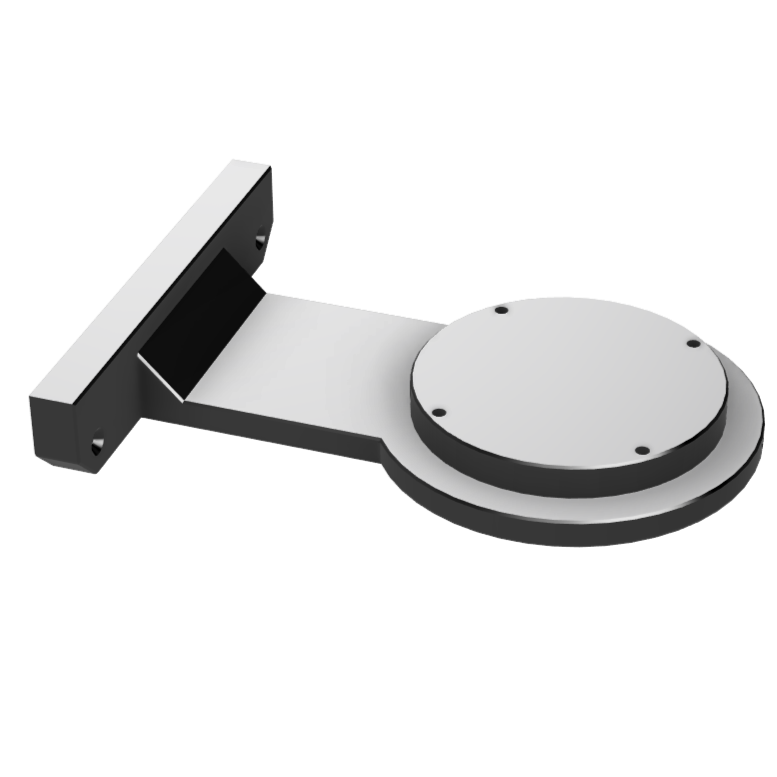

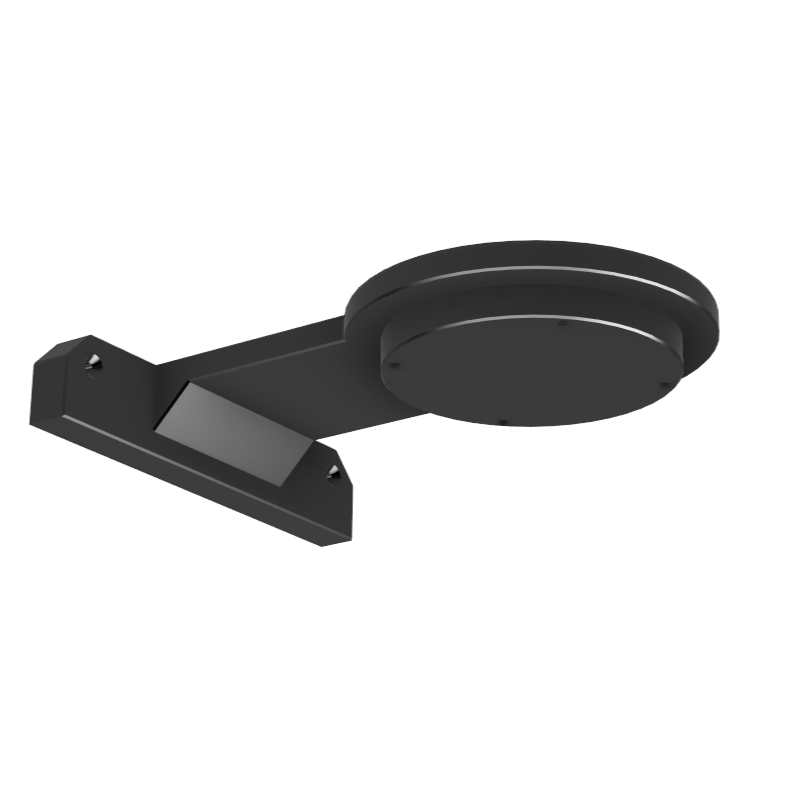

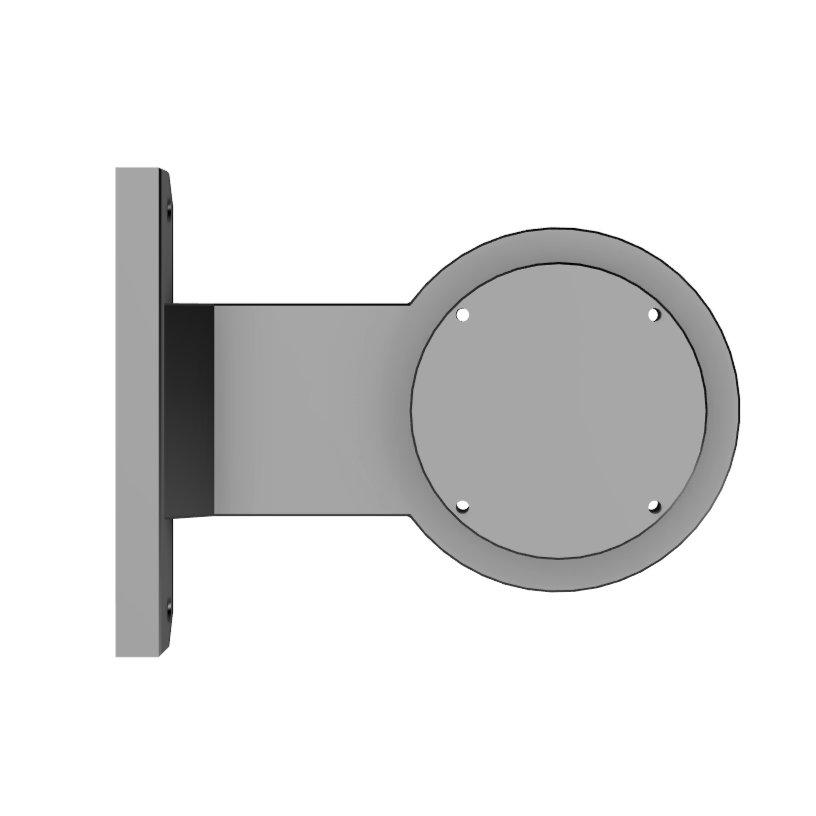

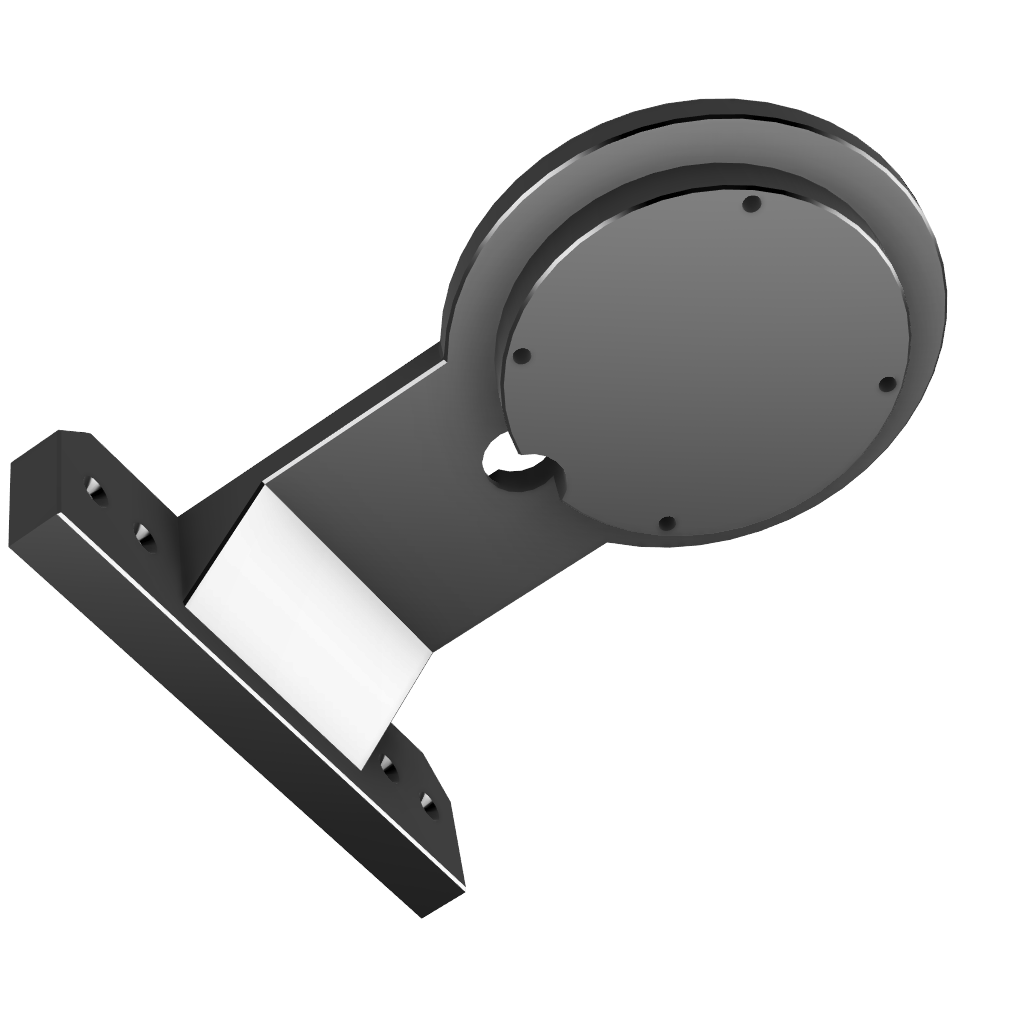

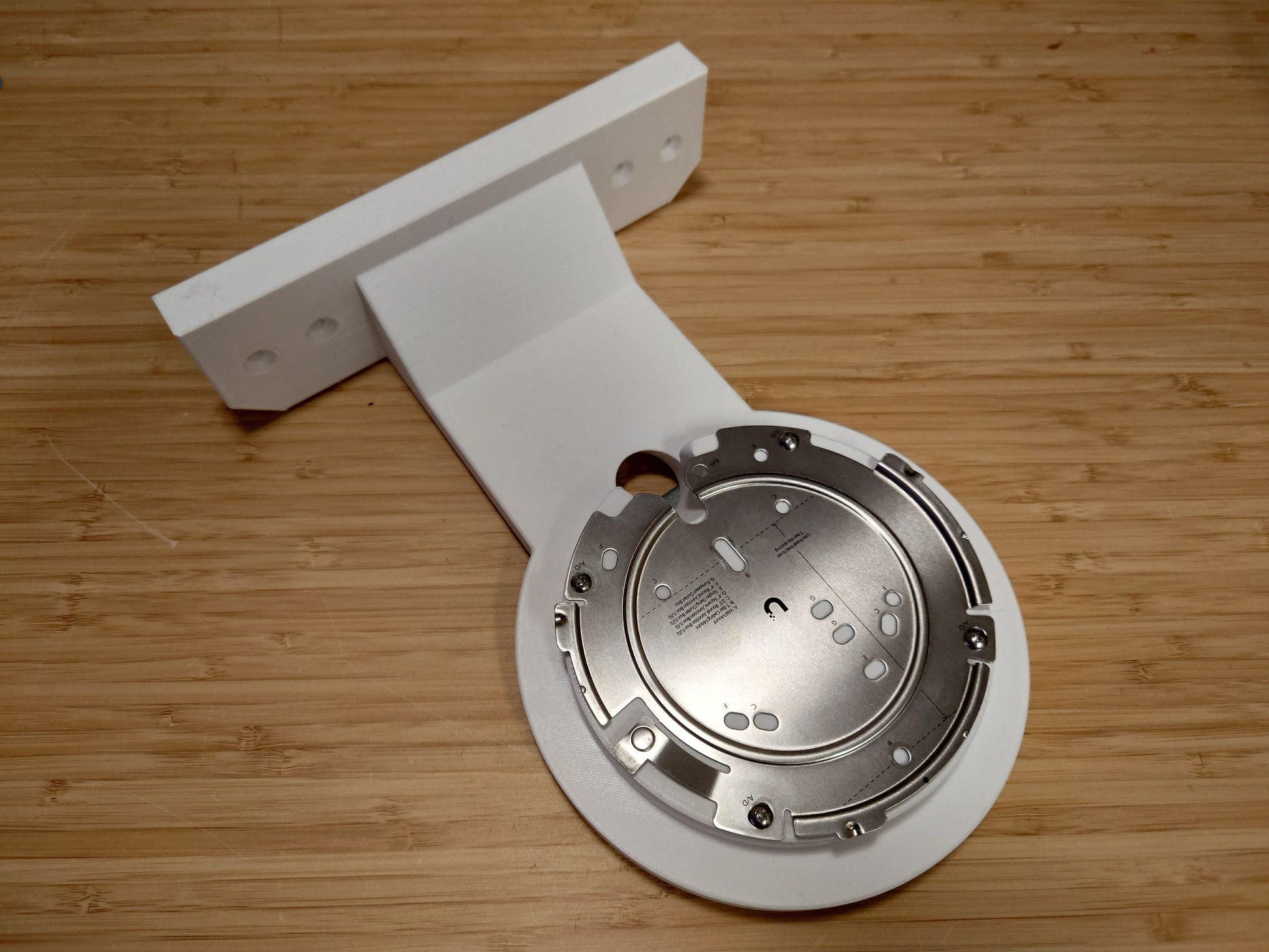

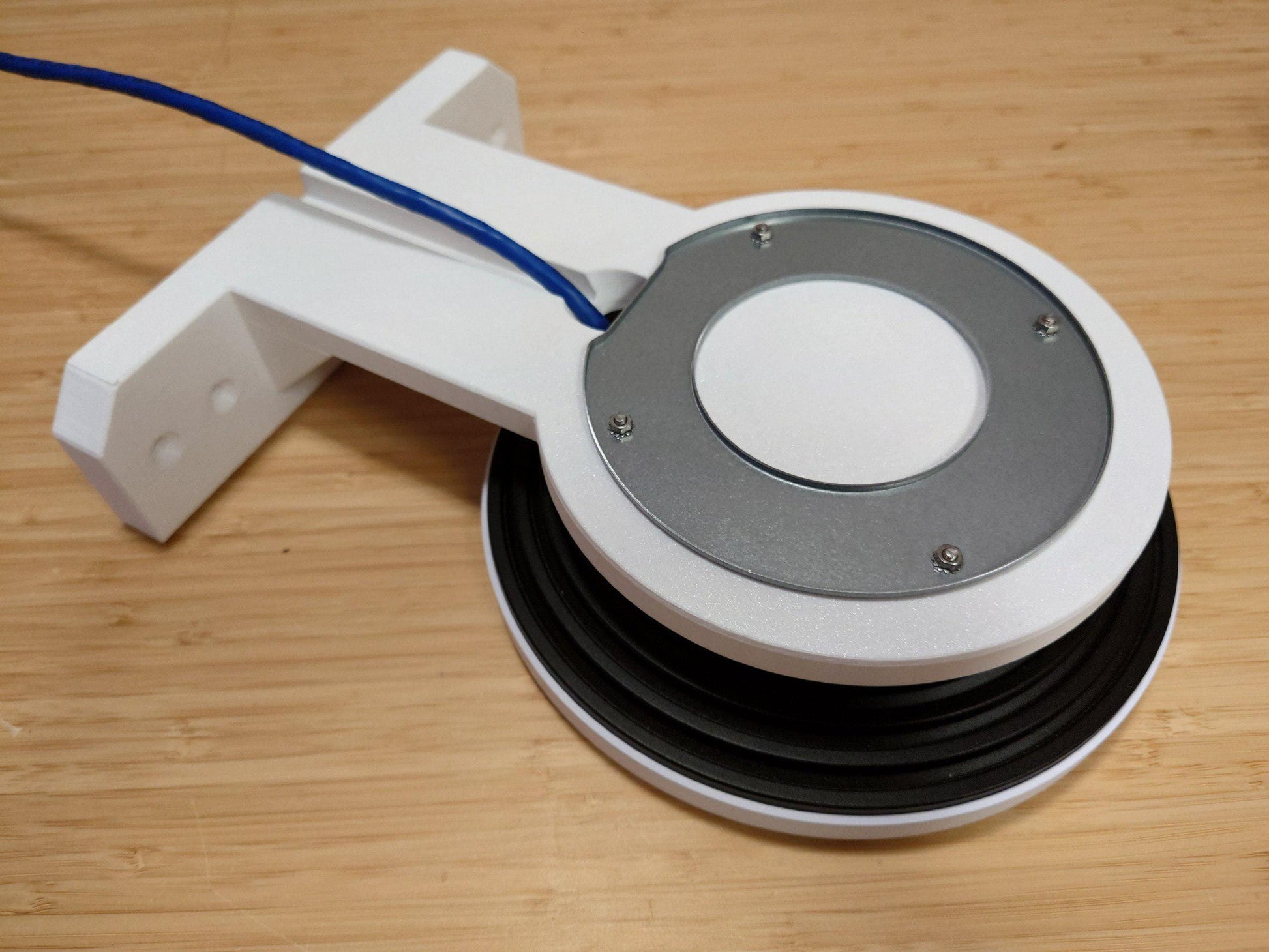

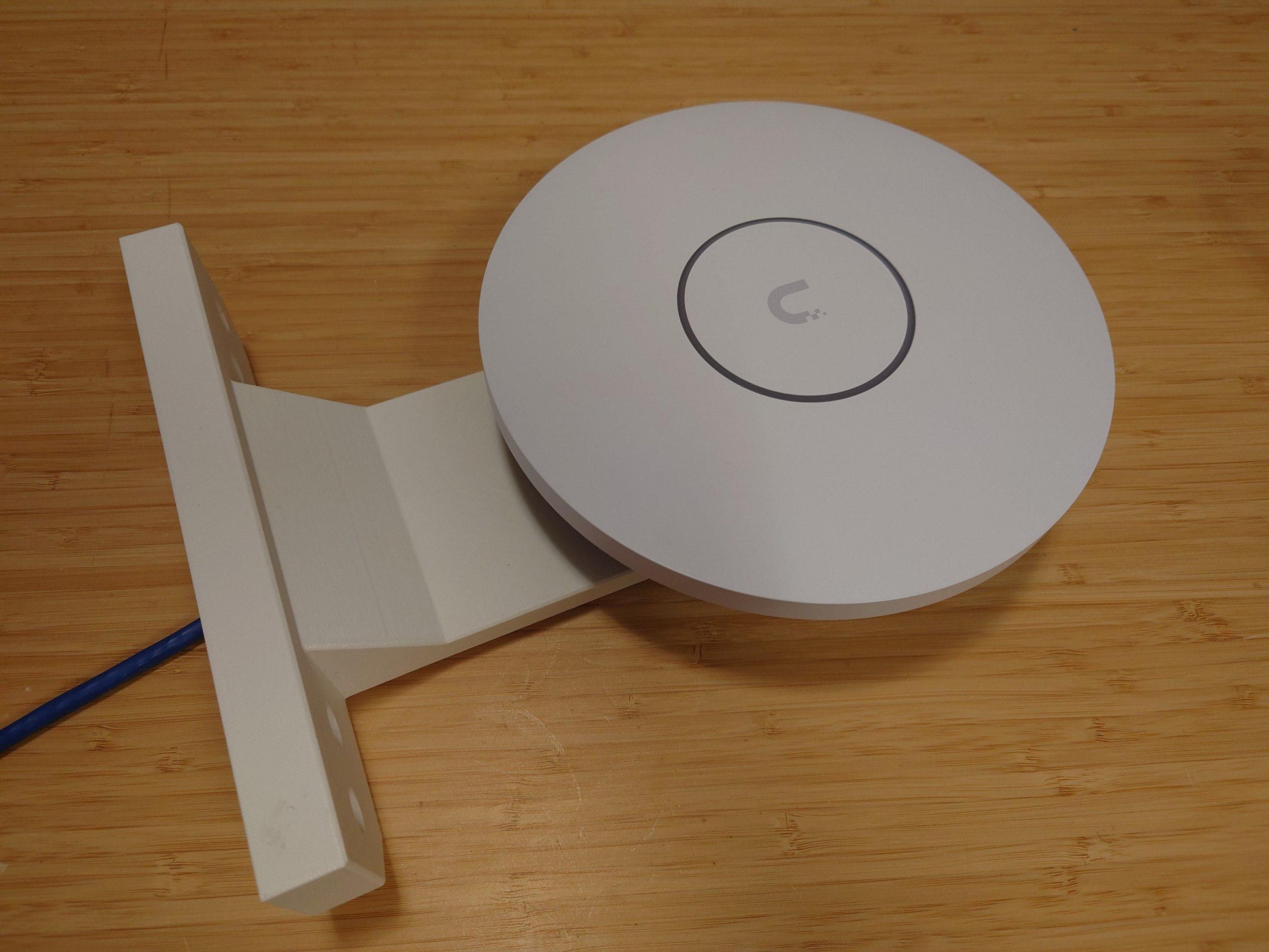

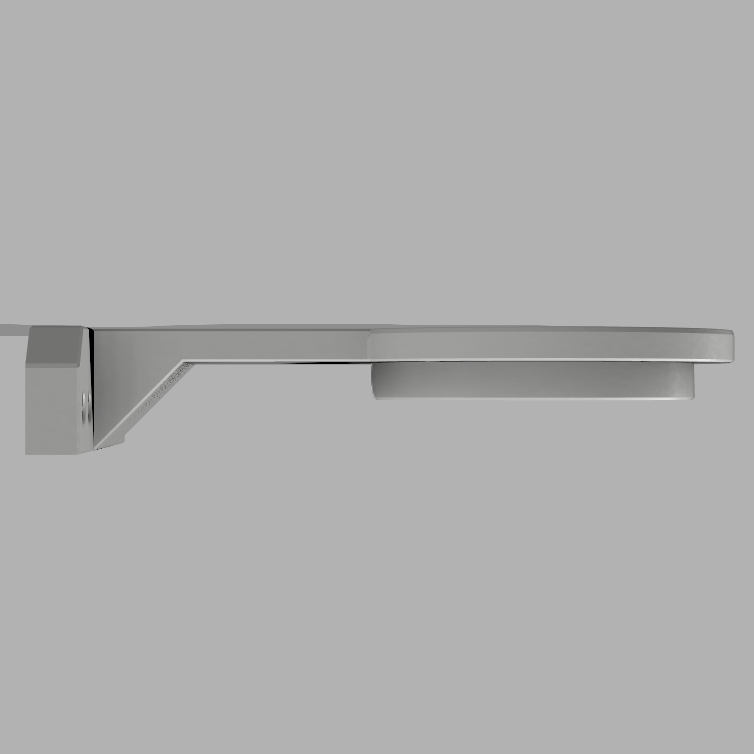

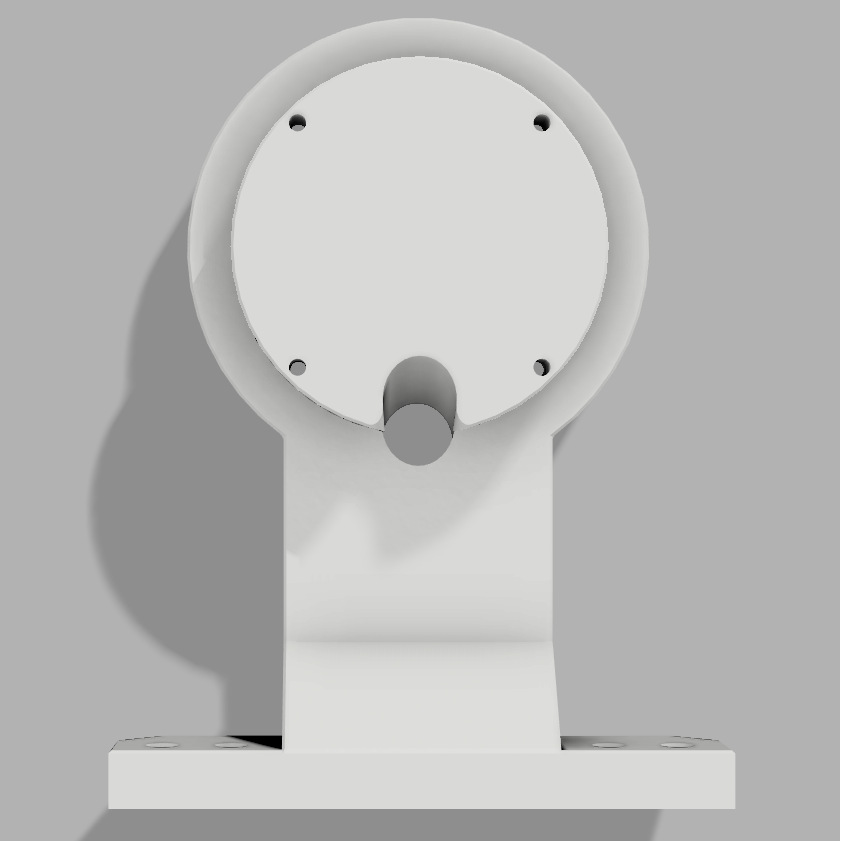

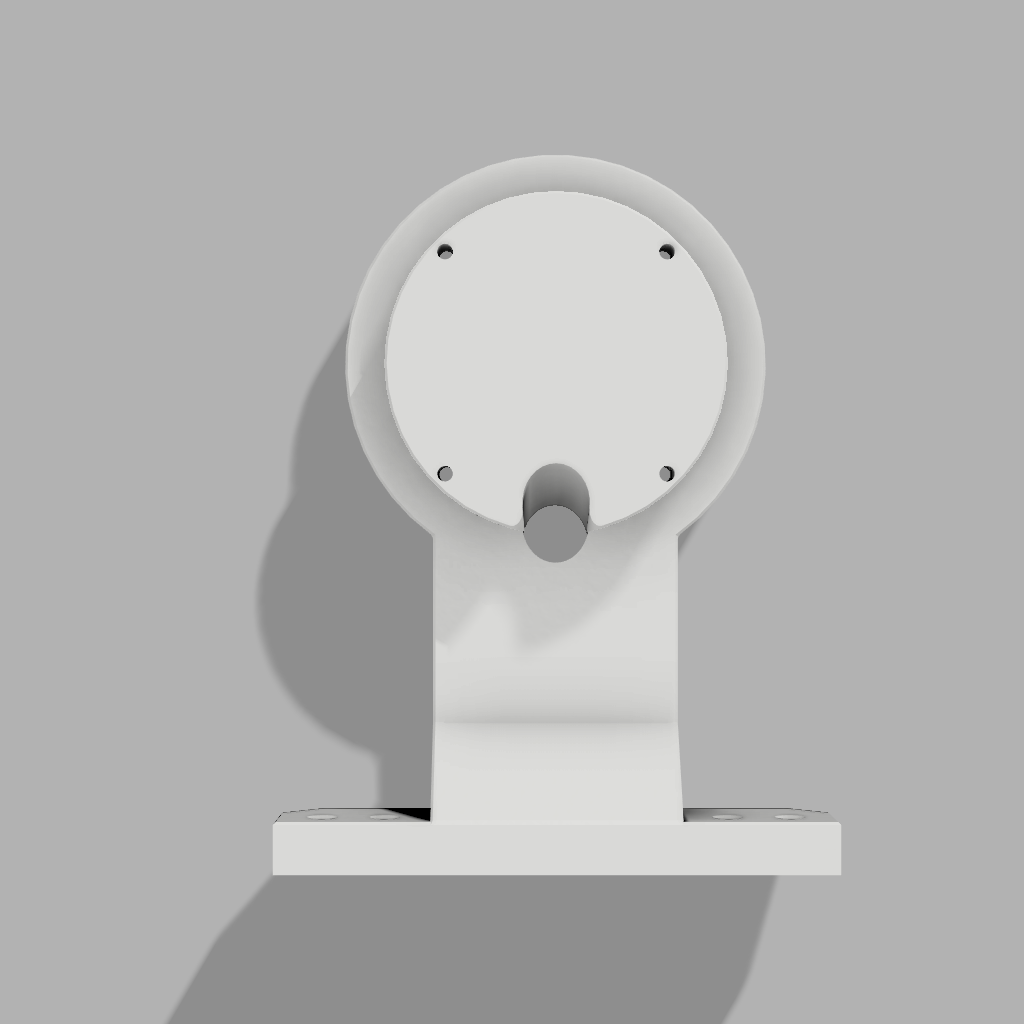

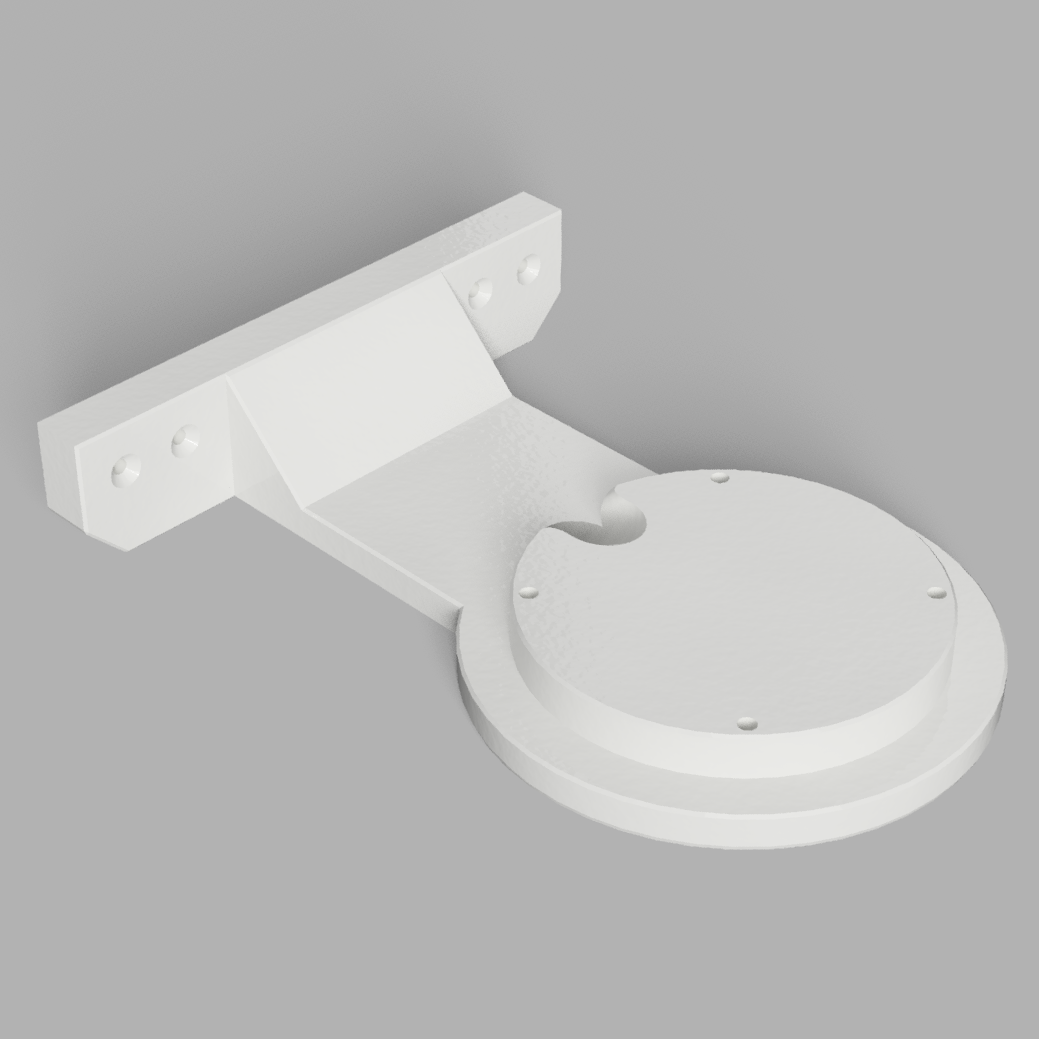

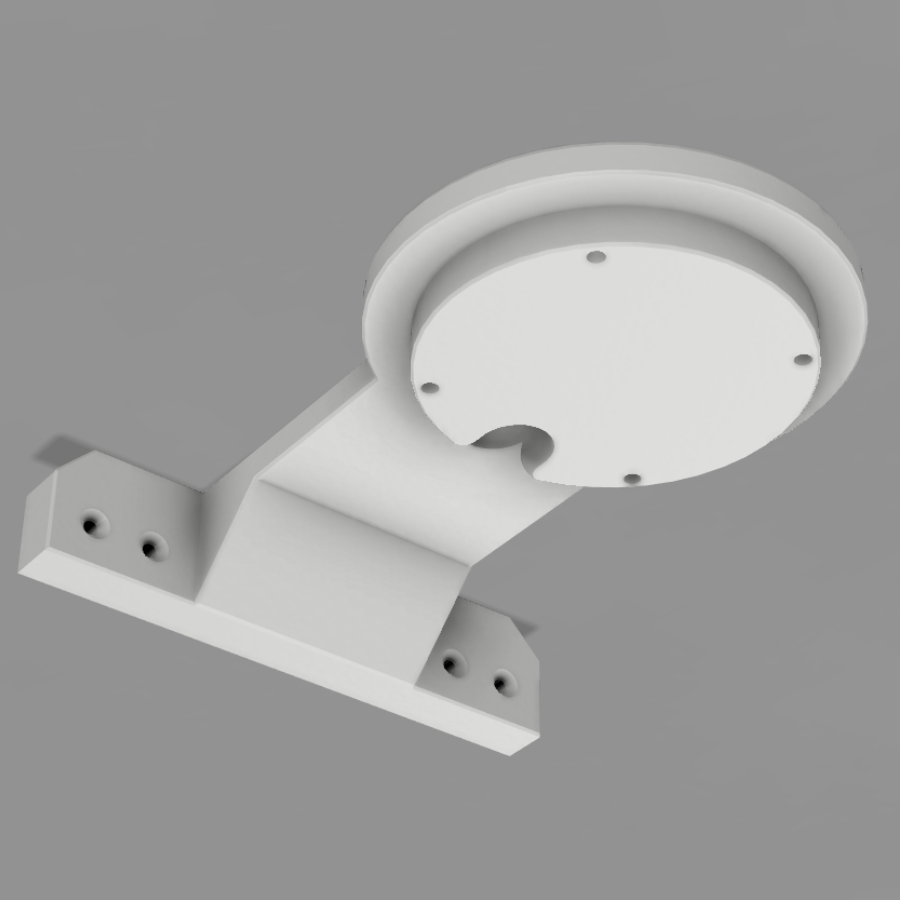

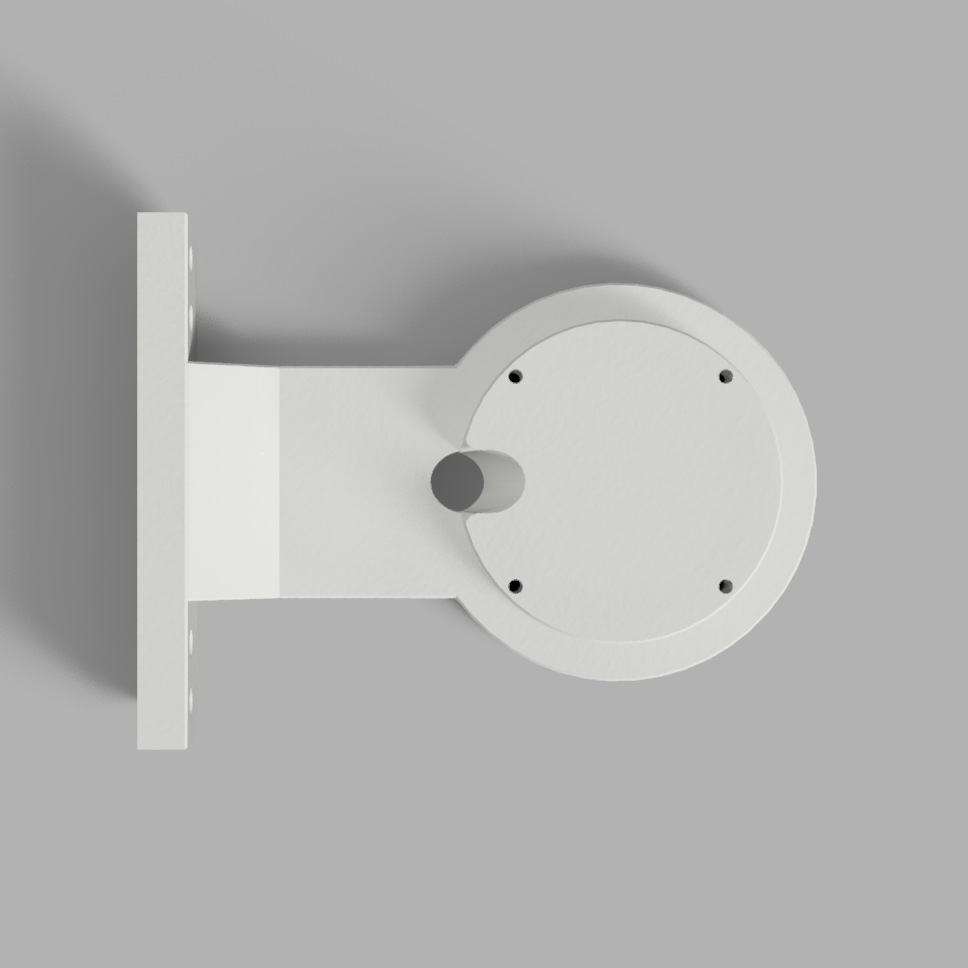

Securely mount your enterprise-grade network gear with the Horizontal Wall Mount for U7-Pro-XG & U7-Pro-XGS. This high-strength bracket offers a sleek, space-saving profile designed for optimal positioning and peak wireless performance.
Dimension: 10.92 in x 8.46 in x 1.73 in (277.48 mm x 215 mm x 44 mm) Weight: 9oz
What's Included: (1) Heavy-Duty Mounting Bracket

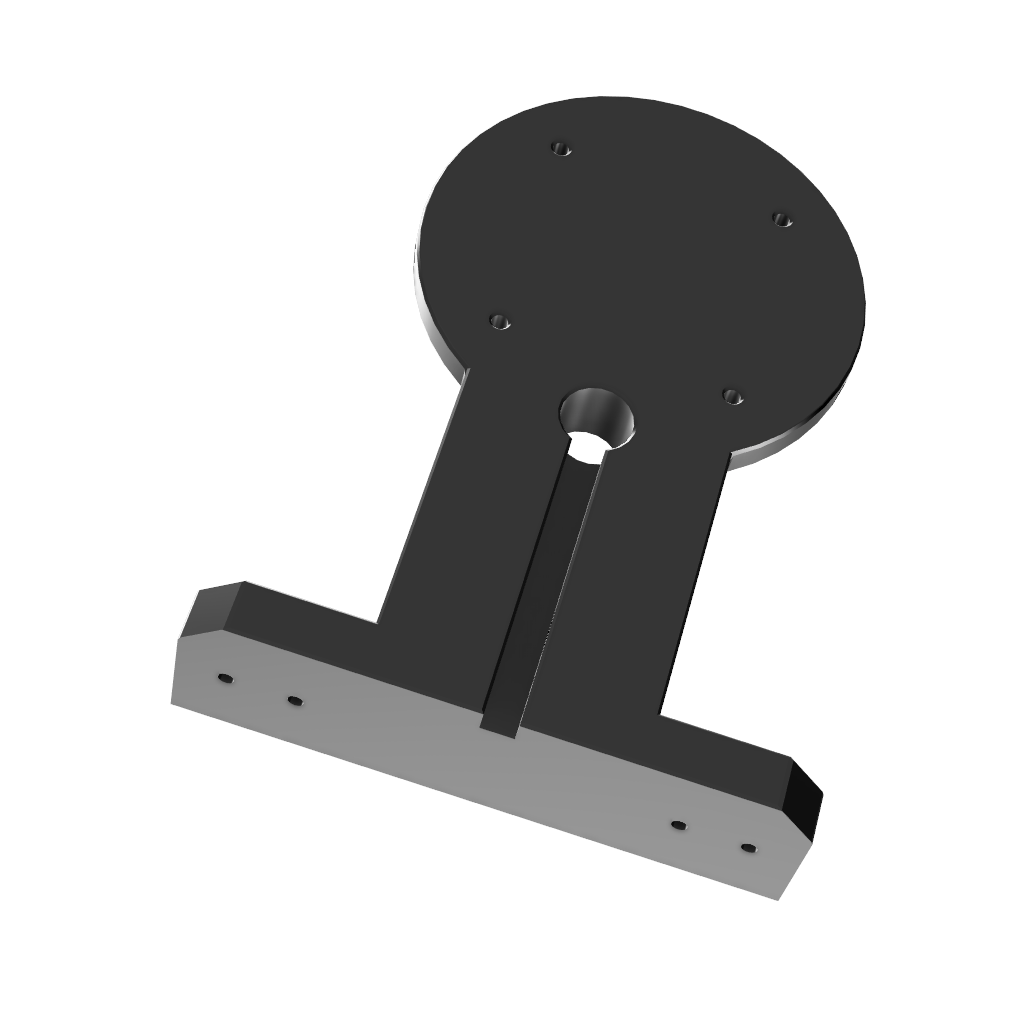

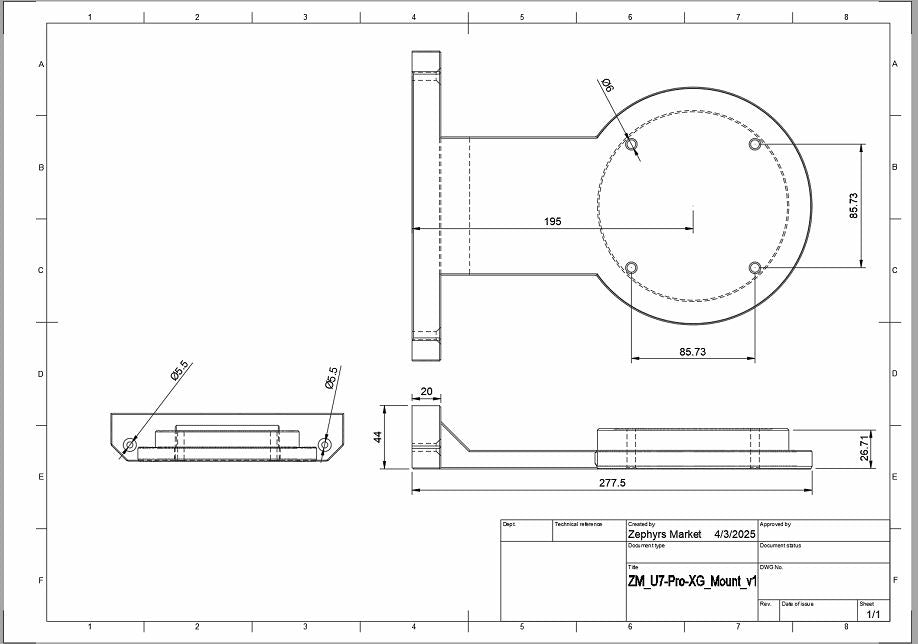

📏 Mounting Specifications
Hole Diameter: 5.5mm (Compatible with #10 or #12 screws)
Vertical Spacing: 24mm (Center-to-Center)
Horizontal Spacing: 132mm (Between hole sets)
Total Span: ~156mm
🏗️ Recommended Hardware by Wall Type
Drywall / Sheetrock • Hardware: 1/4" Toggle Bolts or SnapSkru Heavy-Duty Anchors. • Pro-Tip: The XGS is a heavy unit; avoid standard plastic "push-in" anchors. Use toggles that expand behind the wall for maximum safety.
Wood Studs / Plywood • Hardware: #10 or #12 Wood Screws (1.5" to 2" length). • Pro-Tip: Pre-drill pilot holes with a 1/8" or 9/64" drill bit to prevent wood splitting.
Concrete / Brick / Cinder Block • Hardware: 3/16" Tapcon Concrete Screws or 7mm Wall Plugs (Brown). • Pro-Tip: A hammer drill and masonry bit are required for these surfaces.
Metal Studs • Hardware: #10 or #12 Self-Tapping Metal Screws. • Pro-Tip: Tighten by hand to avoid stripping the thin metal flange.
Questions? Need a custom color or bulk order? Send us a message—we're here to help!
