Ridgid Oscillating Belt Sander 4" Dust Shroud

Description

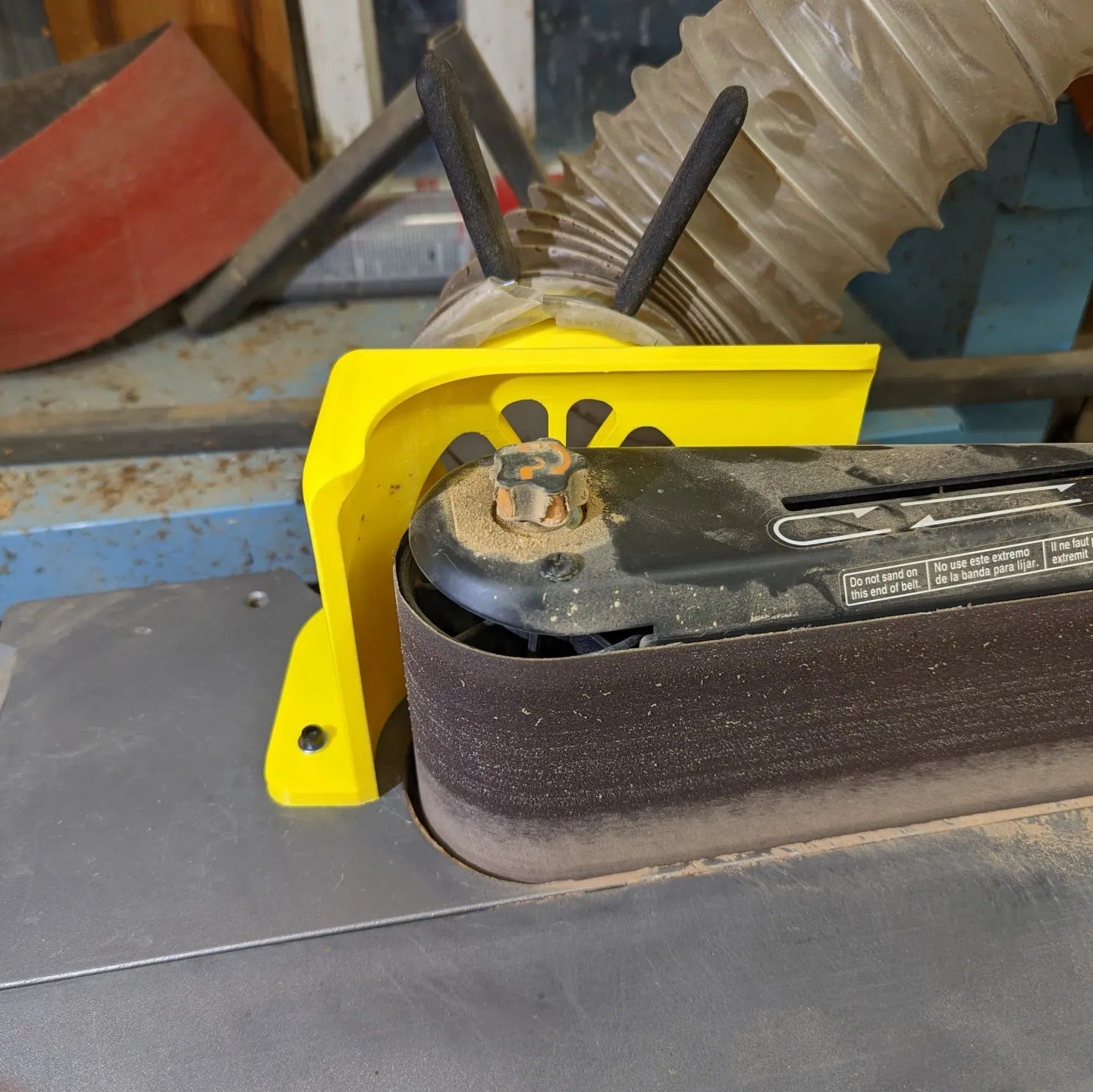

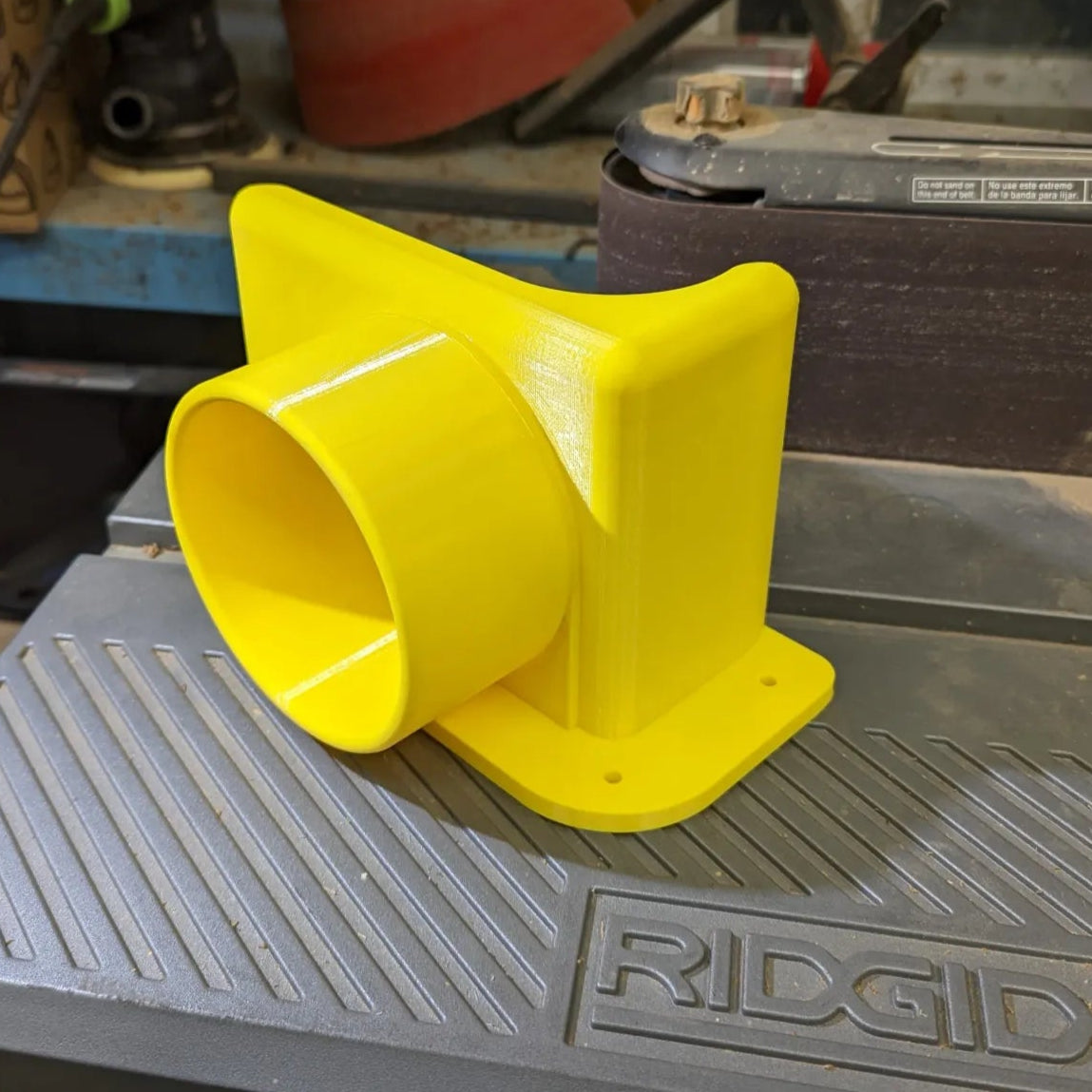

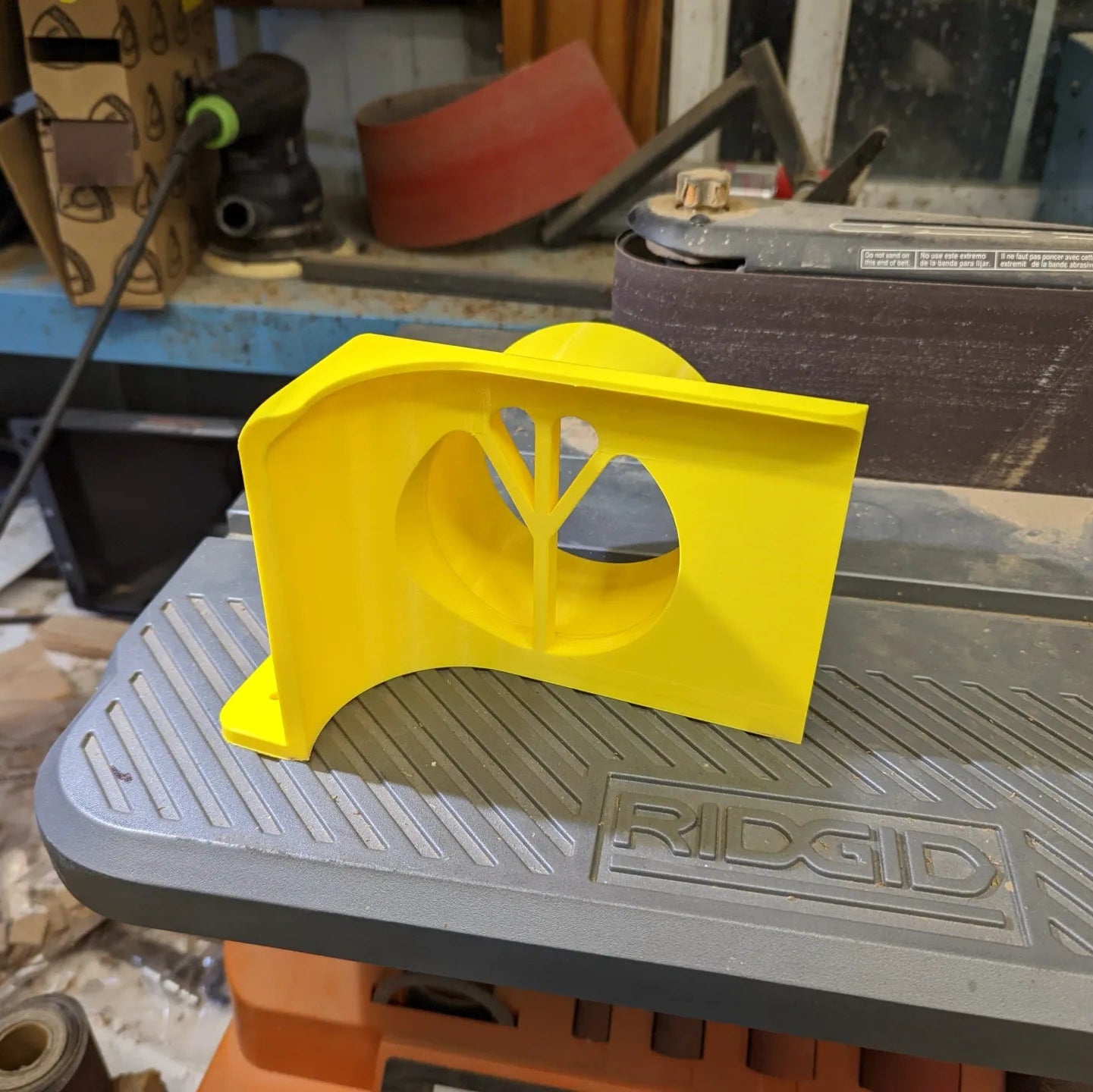

Upgrade your workshop with our precision 3D-printed 4" Dust Shroud, designed specifically for the Ridgid Oscillating Belt Sander. This essential accessory is engineered to capture and contain dust at the source, preventing it from becoming airborne and contaminating your workspace. Keep your shop cleaner, improve your visibility while sanding, and breathe easier with this simple yet effective upgrade.

This dust shroud is a must-have for any professional or hobbyist looking for superior dust management. By connecting directly to your 4" dust collection system, it provides a significant improvement over the stock 2.25" port, ensuring maximum dust extraction and a safer, more efficient workflow.

What's Included

• 1x Ridgid Oscillating Belt Sander 4" Dust Shroud (Color may vary based on filament availability)

Installation Instructions

Please note that this dust shroud requires minor modification to your sander's table for a secure fit.

Recommended Method (Most Secure)

1. Position the Shroud: Place the dust shroud onto your sander's table, ensuring it is properly aligned.
2. Mark the Holes: Use a pencil or marker to mark the locations for the two mounting holes.
3. Drill and Tap: Carefully drill and tap two holes for #8-32 machine screws.
4. Attach the Shroud: Secure the shroud to the table using two #8-32 machine screws (not included).

Alternative Method (No Modification)

If you prefer not to modify your sander's table, you can use VHB double-sided foam tape for a strong, semi-permanent bond.

1. Clean Surfaces: Thoroughly clean the bottom of the shroud and the corresponding area on the sander's table with a degreaser or alcohol to ensure proper adhesion.
2. Apply Tape: Apply VHB double-sided foam tape to the bottom of the dust shroud.
3. Attach the Shroud: Carefully position and press the shroud firmly onto the sander's table.

Please Note: While the VHB tape method is effective, it may be more difficult to remove the shroud if you need to access the end of the belt.

Features

• Improved Dust Collection: Replaces the stock 2.25" dust port with a high-flow 4" connection.
• Cleaner Workspace: Prevents dust from dispersing into the air, keeping your shop clean and improving air quality.
• Enhanced Visibility: A cleaner work area allows for better visibility of your workpiece.
• Durable Construction: 3D-printed from high-quality, durable materials.
• Easy Maintenance: The shroud does not need to be removed to replace the sanding belt or switch to the spindle sander.
